FL130SV
FL130SV
Product Servo Motor

FL130SV

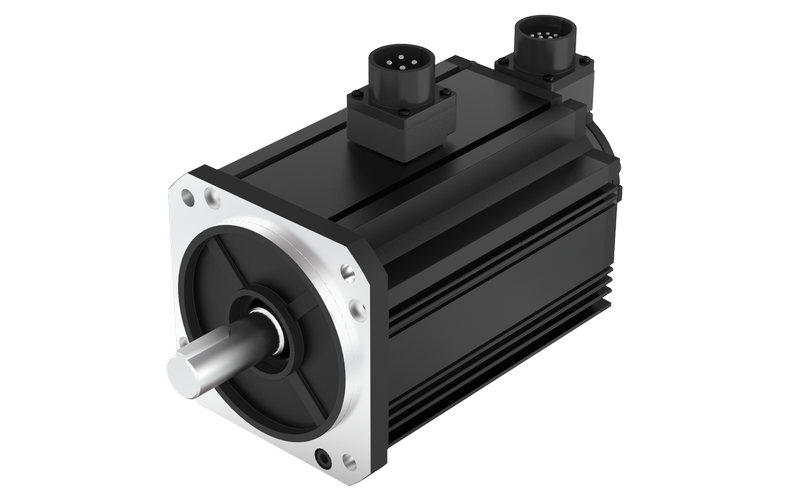

130mm servo motor, 2000-3000W, 48VDC, 220VDC
option:
  • FL130SV
  • FL130SV
  • FL130SV
  • FL130SV

普通手艺特征 (General Technical Information)

显著特点(Characteristic)参数指标(Parameter)
标识号器案例(Encoder type)1、光电科技打码器 Optical encoder2、磁商品代码器 Magnetic encoder3、屈曲箱式变压器Resolver提示:多个分辩率先选,增长式、相对而言值式先选。Note: Multiple resolutions are available;Incremental and absolute values are available.
径向阻抗( Max radial force )490N @ 20mm from the flange   原因首要条件Environmental conditions 利用率状态体温: -20℃~ +40℃;Temperature: -20℃~ +40℃通过情况发生对环境湿度的:≤90%RH(无凝露);Relative humidity: ≤90%RH(No dewing)配置现状:阔别多年腐蚀、可燃性气休,油滴,尘烟,海泼≤1000m(1000~4000m,降额利用率);Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m,Derating use);存放情况下:-20℃~ +60℃,≤85%RH(无凝露)。Storage Condition: -20℃~ +60℃,≤85%RH(No dewing).
轴上环境下( Max axial force )196N
电绝缘品阶(Insulation Class)Class B
防防品阶(Protection level)IP65


机电手艺机能 (Motor Technical Specification)

示例 (Model)模块(Unit)FL130SV200FL130SV300
额外的功效(Rated power)  PnW20001000
特别电压降(Rated voltage)   UVAC/VDC2204822048
特别传动比(Rated torque)  TnN·m9.559.5514.314.3
30%功率(Rated current)   InA9.352.91479.3
最大的时速(Maximum speed)  nmaxRPM3000300030003000
明显惯量(Maximum torque) TmN·m28.6528.6542.942.9
最高直流电压(Maximum current)  Im A27.9158.742237.9
电阻器(Line to line resistance) RLΩ0.80.0250.50.016
电感(Line to line inductance) LLmH4.20.1430.1
反电势因子(Back EMF) KeV/Krpm68126812
传动比标准值(Torque constant)  KtNm/A1.120.21.120.2
机械同时常数(Electrical time constant)  τems5.35.66.06.3
POS机时会常数(Mechanical time constant) τmms1.531.541.361.4
扭动惯量(Rotor inertia) Jm0kg.cm²141419.919.9
运转惯量带刹车系统器(Rotor inertia with brake) Jm1kg.cm²15.215.220.220.2
极数(Number of poles)
10101010
代码器(Encoder)
2500ppr光电技术编码查询器(增减式)2500p/rev incremental encoder
车身长宽(Motor length) L1mm150165178193
木材粉碎机机身长宽带行车减速器(Motor length with brake) L2mm178193206221
权重 (Weight)Kg77.511.712.7
份量带汽车制动阀(Weight with brake)Kg9.51014.215.2


接线申明 (Electric Connection)

能源资源线的毗连器接电源界说见电子设计图纸。识别码器的毗连器接线两端界说见cad图纸。


该机电工程也能如果根据投资者必须要定做。

The motor can be designed &manufactured with customized request.


Motor size



机能曲线 (Performance Curve)





Download
FL130SV200-48V-20EA1 222.57 KB
FL130SV200-220V-20EA1 317.09 KB
FL130SV300-48V-20EA1 234.98 KB
FL130SV300-220V-20EA1 179.75 KB
