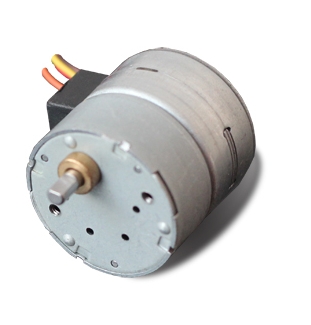

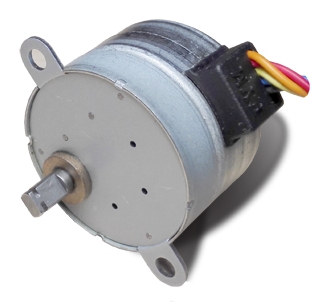

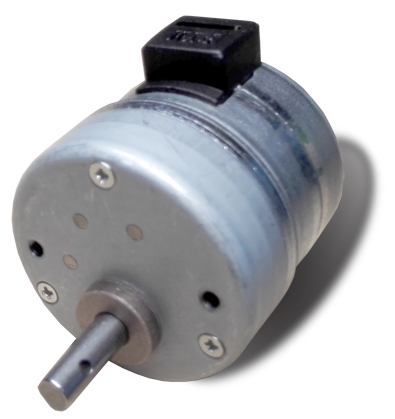

Cooperation| Item | Specifications |
| 步距角gps精度Step Angle Accuracy | ±7% (整步，变压器空载full step, no load) |
| 电阻器公役Resistance Accuracy | ±10% |
| 电感公役Inductance Accuracy | ±20% |
| 温度上升Temperature Rise | 80K Max. ambient temperature 40。C80K 情形湿度40℃ |
| 情況室内温度Ambient Temperature | -10。C~+50。C |
| 电绝缘电阻性能功率Insulation Resistance | 100MΩMin. ,500VDC |
| 绝缘性官阶Insulation Class | Class E |
| 介电刚度Dielectric Strength | 650VAC for one second, leakage current 1mA650VAC 秒钟， 泄电电流值1mA |
| 产品型号Model | 步距角Step Angle(Deg.) | 相数No. ofPhase | 的电压Voltage(V) | 相电压Current/Phase(A) | 相内阻Resistance/Phase(ohms) | 负载牵入周期No-loadPull-inFrequency(pps) | 牵入最大扭矩 Pull-in Torque (g.cm) | 努力扭矩HoldingTorque (g.cm)olHol | 定位系统力距DetentTorque(g.cm) | 速度比Ratio | 接线方法图WireDiagram |
| PMG2505-01 | 7.5/5 | 2 | 2.6 | 0.52 | 5 | 450 | 75 at 200pps | 450 | <150 | 1:5 | A |
| PMG2505-02 | 15/5 | 2 | 3.5 | 0.365 | 9.6 | 420 | 100 at 100pps | 500 | <150 | 1:5 | |
| PMG2510-01 | 7.5/10 | 2 | 2.8 | 0.467 | 6 | 550 | 200 at 200pps | 1400 | <500 | 1:10 | |
| PMG2530-01 | 7.5/30 | 4 | 13.3 | 0.11 | 120 | 680 | 750 at 100pps | 4000 | <1400 | 1:30 | B |
| PMG3519-01 | 7.5/19 | 4 | 24 | 0.218 | 110 | 360 | 2280 at 200pps | 4500 | <2280 | 1:19 | C |
| PMG3519-02 | 7.5/19 | 4 | 12 | 0.4 | 30 | 360 | 1900 at 200pps | 4000 | <2600 | 1:19 | |
| PMG3508-01 | 7.5/8.4 | 4 | 12 | 0.4 | 30 | 500 | 840 at 400pps | 1150 | <500 | 1:8.4 | |
| PMG3530-01 | 7.5/30 | 4 | 12 | 0.4 | 30 | 500 | 3000 at 400pps | 5000 | <1500 | 1:30 | |
| PMG3560-01 | 7.5/60 | 4 | 12 | 0.4 | 30 | 420 | 6000 at 400pps | 8000 | <3000 | 1:60 | |
| PMG35120-01 | 7.5/120 | 4 | 12 | 0.4 | 30 | 400 | 8000 at 300pps | 10000 | <6000 | 1:120 |
换代机械设备可能依据客服要自定义。
The motor can be designed &manufactured with customized request.
