特征提要 ( General Specifications )
| 吃瓜网
定子毗连体例 ( Winding Type ) | 四角形 ( Delta connection) |
| 霍尔编造角度来 ( Hall Effect Angle ) | 120度电方向角 ( Electrical Angle of 120 degree) |
| 径向空隔 ( Radial Play ) | 0.02mm@450g |
| 心轴缝隙 ( Axial Play ) | 0.08mm@450g |
| 最主要径向环境下 ( Max radial force ) | 28N 距活套法兰20mm ( 20mm From the flange) |
| 很大心轴电动机扭矩 ( Max axial force ) | 10N |
| 介电挠度 ( Dielectric Strength ) | 600VAC/1S |
| 隔绝阻值 ( Insulation Resistance ) | 100MΩ, 500VDC |
| 情况报告平均温度 ( Ambient Temperature ) | -20°C ~ +50°C |
| 接地官阶 (Insulation Class) | Class B |
接线申明(Electric Connection)
| 引出来线规格Type | 产生线色彩的运用Color | 药理作用Functions |
| UL1430 AWG26 | 纯白色 ( Red ) | 霍尔24v电源正 ( Vcc ) |
| 淡蓝色 ( Blue ) | 霍尔 U ( Hu ) |
| 翠绿色 ( Green ) | 霍尔 V ( Hv ) |
| 纯白色 ( White ) | 霍尔 W ( Hw ) |
| 玄色 ( Black ) | 霍尔电源线负 ( GND ) |
| UL1430 AWG20 | 黄颜色 ( Yellow ) | U相 ( Phase U ) |
| 紫色 ( Red ) | V相 ( Phase V ) |
| 玄色 ( Black) | W相 ( Phase W ) |
机电能 (Electrical Specifications)
| 单 位 (Unit) | FL42BLS01 | FL42BLS02 | FL42BLS03 | FL42BLS04 |
| 极数 ( Number of poles ) |
| 8 |
| 相数 ( Number of phases ) |
| 3 |
| 增加电流电压 ( Rated voltage ) | VDC | 24 |
| 其他的转距 ( Rated torque) | mN.m | 62.5 | 125 | 185 | 250 |
| 不间断正常运转力矩 ( Continuous stall torque) | mN.m | 75 | 150 | 220 | 300 |
| 上限带宽 ( Rated speed ) | RPM | 4000 | 4000 | 4000 | 4000 |
| 三倍热效率 ( Rated power ) | W | 26 | 52.5 | 77.5 | 105 |
| 阀值力矩 ( Peak torque ) | mN.m | 190 | 380 | 560 | 750 |
| 谷值工作电流 ( Peak current ) | A | 5.75 | 10.4 | 15.1 | 21.2 |
| 线内阻 ( Line to line resistance ) | ohms@20℃ | 1.5 | 0.8 | 0.43 | 0.3 |
| 线电感 ( Line to line inductance ) | mH | 2.1 | 1.2 | 0.71 | 0.5 |
| 力矩常数 ( Torque constant ) | Nm/A | 0.033 | 0.0366 | 0.037 | 0.0354 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 2.45 | 2.71 | 2.74 | 2.62 |
| 跳出惯量 ( Rotor inertia ) | g.cm2 | 24 | 48 | 72 | 96 |
| 外观间距 ( Motor length ) L | mm | 40.3 | 60.3 | 80.3 | 100.3 |
| 净重 ( Weight ) | Kg | 0.30 | 0.45 | 0.65 | 0.80 |
这款汽车电器还可以确定消费者要全屋定制。
The motor can be designed &manufactured with customized request.
Motor size
Parameter

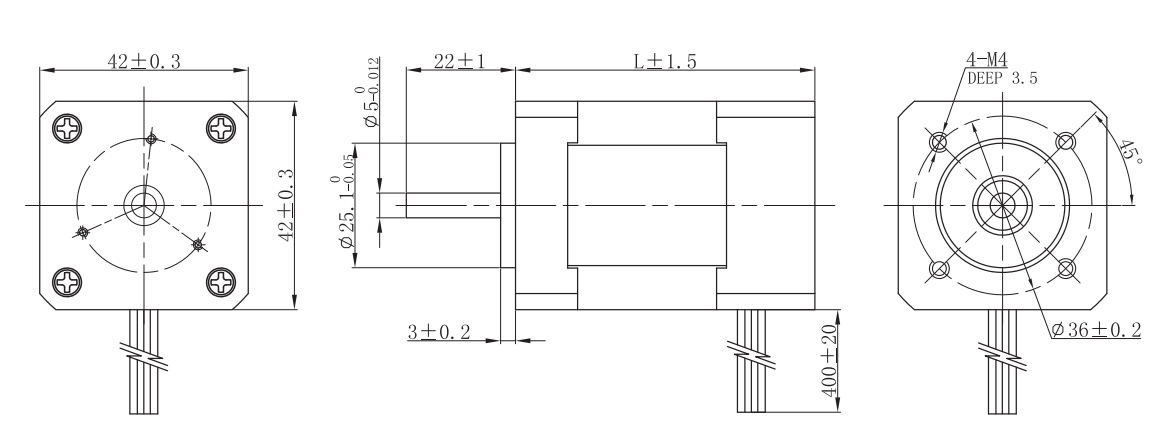

Overall Dimensions
