Product Frameless motor

FL50BL

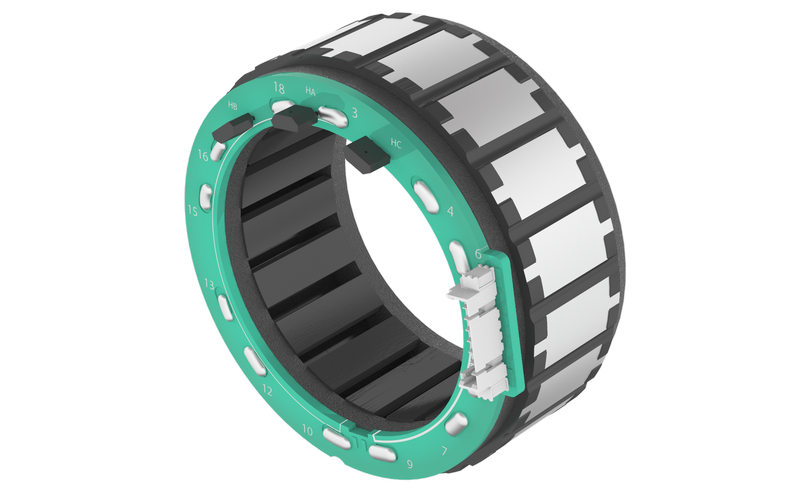

Φ 50mm frameless motor, 48VDC
option:
  • FL50BL
  • FL50BL
  • FL50BL
  • FL50BL
名目(Items)FL50BL15FL50BL08公役(Tolerance)
定子外径D50mm50mm±0.031(js9)
定子长度L26mm20mm±1
转子内径D130mm30mm(+0.033/0)H8
转子长度L1 22mm16mm±0.2
灌胶面外圆E47.6mm47.6mm±0.2
灌胶面高度F2.5mm2.5mm±0.3
定子铁芯高度A15mm8.6mm±0.2/-0.3


特征提要 ( General Specifications )

吃瓜网 定子毗连体例( Winding Type )星形 ( Star connection)
霍尔散播谣言斜度( Hall Effect Angle )120度电度角 ( Electrical Angle of 120 degree)
介电标准( Dielectric Strength )  1000VAC/1S
绝缘内阻内阻( Insulation Resistance )100MΩ, 500VDC
通过情况报告( Operation Ambient )-20°C   ~   +50°C
绝缘性官阶(Insulation Class)Class B



接线申明(Electric Connection)

生成线色彩Color引出来线款型Type效果Functions
PIN1Connector for Hall is optionalType: SM07B-GHS-TB热敏 ( NTC2 )
PIN2热敏 ( NTC1 )
PIN3霍尔电压负 ( GND )
PIN4霍尔 A ( Ha )
PIN5霍尔 B ( Hb )
PIN6霍尔 C( Hc )
PIN7霍尔24v电源正  ( Vcc )
成黄色  ( Yellow )UL1332 AWG22UL1332 AWG20U相 ( Phase U )
纯白色  ( Red )V相 ( Phase V )
玄色  ( Black)W相 ( Phase W )


机电能 (Electrical Specifications)


单 位 (Unit)FL50BL15-48V-35183AFL50BL08-48V-50170A
极数  ( Number of poles )
2020
相数  ( Number of phases )
33
特别工作电压 ( Rated  voltage )         VDC4848
附加扭矩 ( Rated torque)        N.m0.50.3
三倍工作电流(Rated current)                 A4.83.6
附加速度 ( Rated speed )         RPM35004800
加倍吃瓜网 功率 ( Rated power )         W183151
最大程度转数(Maximum speed)               RPM46006000
阀值电动机扭矩 ( Peak torque )          N.m1.50.96
阀值电流值 ( Peak current )         A14.511.6
线热敏电阻 ( Line to line resistance )              ohms@20℃ 0.770.9
线电感 ( Line to line inductance )              mH  0.380.4
力矩常数 ( Torque constant )         Nm/A0.1200.092
反电势 ( Back EMF )           Vrms/KRPM7.35.6
屏幕大小 ( Motor length )       mm2620
重量 ( Weight )               g14795.6
电气开关同时常数(Electrical time constant)    ms0.490.45


新款上市机电工程就能够根据的客户可以制定。

The motor can be designed &manufactured with customized request.

Motor size


Download
FL50BL08-48V-50170A 158.67 KB
FL50BL15-48V-35183A 173.74 KB
