FL80SV
FL80SV
Product Servo Motor

FL80SV

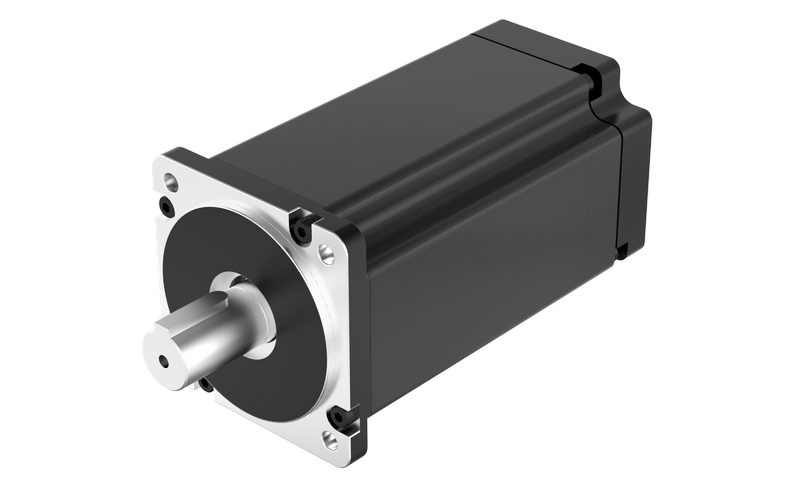

80mm servo motor, 750-1000W, 48VDC, 220VDC
option:
  • FL80SV
  • FL80SV
  • FL80SV
  • FL80SV

普通手艺特征 (General Technical Information)

的特点(Characteristic)主要参数(Parameter)
编写代码器示例(Encoder type)1、光电材料数字器 Optical encoder2、磁代码器 Magnetic encoder3、逆转配电变压器Resolver提示:很多分辩率可选装装,增加式、相比值式可选装装。Note: Multiple resolutions are available;Incremental and absolute values are available.
径向额定负载(Max radial force)392N @ 20mm from the flange   具体情况条件Environmental conditions 通过情況温湿度: -20℃~ +40℃;Temperature: -20℃~ +40℃灵活运用条件含水率:≤90%RH(无凝露);Relative humidity: ≤90%RH(No dewing)装制时候:一别浸蚀、可燃性混合气体,油滴,颗粒物,气温≤1000m(1000~4000m,降额再生利用);Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m,Derating use);保存现象:-20℃~ +60℃,≤85%RH(无凝露)。Storage Condition: -20℃~ +60℃,≤85%RH(No dewing).
载荷环境下(Max axial force)147N
电绝缘官阶(Insulation Class)Class B
安全防护网等级(Protection level)IP65


机电手艺机能 (Motor Technical Specification)

范本(Model)单无(Unit)FL80SV75FL80SV100
木制托盘工率(Rated power) PnW7501000
三倍电压值(Rated voltage) UVAC/VDC2204822048
三倍转数(Rated speed) nnRPM3000300030003000
超额电动机扭矩(Rated torque) TnN·m2.392.393.183.18
超额瞬时电流(Rated current)  InA4.422.25.930
比较大带速(Maximum speed) nmaxRPM6000500060005100
最大的扭矩(Maximum torque) TmN·m7.147.149.69.6
最多感应电流(Maximum current) Im A13.273.517.790
热敏电阻(Line to line resistance) RLΩ1.770.0640.8850.034
电感(Line to line inductance) LLmH5.60.23.670.16
反电势因子(Back EMF) KeV/Krpm366.5366.5
扭矩数值(Torque constant) KtNm/A0.540.0980.540.107
不间断同时常数(Electrical time constant) τems3.23.14.14.7
POS机时期常数(Mechanical time constant) τmms1.481.651.060.86
运转惯量(Rotor inertia) Jm0kg.cm²1.561.562.222.22
扭动惯量带汽车制动系统(Rotor inertia with brake) Jm1kg.cm²1.6851.6852.342.34
极数(Number of poles)
10101010
数字器(Encoder)
2500ppr光电科技编号规则器(增减式)2500p/rev incremental encoder
产品设备时间(Motor length) L1mm112118129135
外观的长度带刹车系统器(Motor length with brake) L2mm149155165171
份量 (Weight)Kg2.52.63.23.3
图像带制动阀器(Weight with brake)Kg3.13.23.83.9


接线申明 (Electric Connection)

号码No.引入线色彩搭配Lead Color产生线参数Lead Gauge功能Function声明Description
1淡黄色(Yellow)CableAWG16/14U相(Phase U)
2暗红色(Red)V相(Phase V)
3玄色(Black)W相(Phase W)
标识号器布线特色界说见加工图纸。


这一款机械设备可以,并按照客想要设计。

The motor can be designed &manufactured with customized request.


Motor size



机能曲线 (Performance Curve)



Download
FL80SV75 100.16 KB
FL80SV100 99.67 KB
